PSA Nitrogen Generator

Description

Several factors influence the achievable purity levels in PSA (Pressure Swing Adsorption) Nitrogen Generators. These factors include:

Adsorbent Material: The choice of adsorbent material, such as carbon molecular sieve (CMS) or zeolite, plays a crucial role in determining the achievable purity levels. Different adsorbent materials have varying adsorption capacities and selectivities for oxygen and other impurities. Adsorbents with higher selectivity for oxygen will result in higher purity nitrogen output.

Adsorption and Desorption Times: The duration of the adsorption and desorption phases within the PSA cycle affects the separation efficiency and thus the purity levels. Longer adsorption times allow for a more thorough removal of impurities, leading to higher purity nitrogen. However, longer cycle times may reduce the overall nitrogen production rate.

Pressure Levels: The operating pressure of the PSA Nitrogen Generator impacts the separation efficiency. Higher operating pressures generally enhance the adsorption capacity of the adsorbent material, resulting in better impurity removal and higher purity nitrogen. However, higher pressures may require more energy for compression.

Flow Rates: The flow rates of the compressed air and nitrogen streams influence the contact time between the gas and the adsorbent material. Optimal flow rates need to be determined to ensure sufficient contact time for effective adsorption and desorption, which affects the achieved purity levels.

Number of Adsorption Beds: PSA Nitrogen Generators can be designed with multiple adsorption beds in parallel. Increasing the number of adsorption beds enhances the purification process by providing more adsorption capacity and allowing for continuous operation. Multiple beds also offer flexibility for regenerating the adsorption material without interrupting nitrogen production, leading to higher purity levels.

System Design and Control: The overall design and control system of the PSA Nitrogen Generator play a significant role in achieving desired purity levels. Efficient valve sequencing, precise pressure control, and accurate cycle timing ensure effective separation and maximize nitrogen purity.

Impurity Concentrations in Feed Gas: The initial impurity concentrations in the compressed air feed gas can impact the achievable purity levels. Higher initial impurity concentrations may require more extensive adsorption capacity and longer cycle times to achieve the desired purity.

It's important to note that the achievable purity levels are also influenced by the specific requirements of the application. The purity level needed for a particular application will determine the design considerations and optimization of the PSA Nitrogen Generator to meet those requirements. Consulting with manufacturers or suppliers can provide guidance on system capabilities and help determine the optimal configuration for achieving the desired purity levels.

The operation of a PSA (Pressure Swing Adsorption) Nitrogen Generator involves two main phases: the adsorption phase and the desorption phase. Here's an explanation of each phase:

Adsorption Phase:
During the adsorption phase, compressed air containing impurities, primarily oxygen, enters the PSA Nitrogen Generator. The air passes through one or more adsorption beds filled with a specialized adsorbent material, such as carbon molecular sieve (CMS) or zeolite.
As the air flows through the adsorption bed(s), the adsorbent material selectively adsorbs the oxygen molecules while allowing the nitrogen molecules to pass through. This separation is based on the difference in adsorption affinities between oxygen and nitrogen on the surface of the adsorbent material.

The adsorption bed(s) trap the oxygen molecules, effectively purifying the air stream. The nitrogen gas, with reduced oxygen content, exits the adsorption bed(s) and is collected as the purified nitrogen product.

Desorption Phase:
After the adsorption phase, the adsorbent material in the bed(s) becomes saturated with oxygen and other impurities. To continue the nitrogen production, the adsorbent material needs to be regenerated by removing the trapped impurities.
The desorption phase involves reducing the pressure in the adsorption bed(s) to release the adsorbed impurities. This reduction in pressure causes the adsorbent material to desorb the trapped oxygen molecules.

To facilitate the desorption process, a portion of the purified nitrogen product or a separate purge gas is redirected through the bed(s) in the opposite direction of the adsorption phase. This purge gas carries away the desorbed impurities, allowing them to be vented out of the system.

Once the desorption phase is complete, the pressure is restored to the adsorption bed(s) for the next adsorption cycle, and the process repeats.

The adsorption and desorption phases alternate cyclically, with one or more adsorption beds operating in the adsorption phase while the others are in the desorption phase. This cycle allows for continuous nitrogen production without interruptions, ensuring a consistent supply of purified nitrogen.

The duration of each phase, pressure levels, flow rates, and the number of adsorption beds are controlled and optimized based on the specific design and requirements of the PSA Nitrogen Generator.

Overall, the adsorption and desorption phases in a PSA Nitrogen Generator enable the selective removal of oxygen and impurities from the compressed air, resulting in the production of high-purity nitrogen gas.

Specification

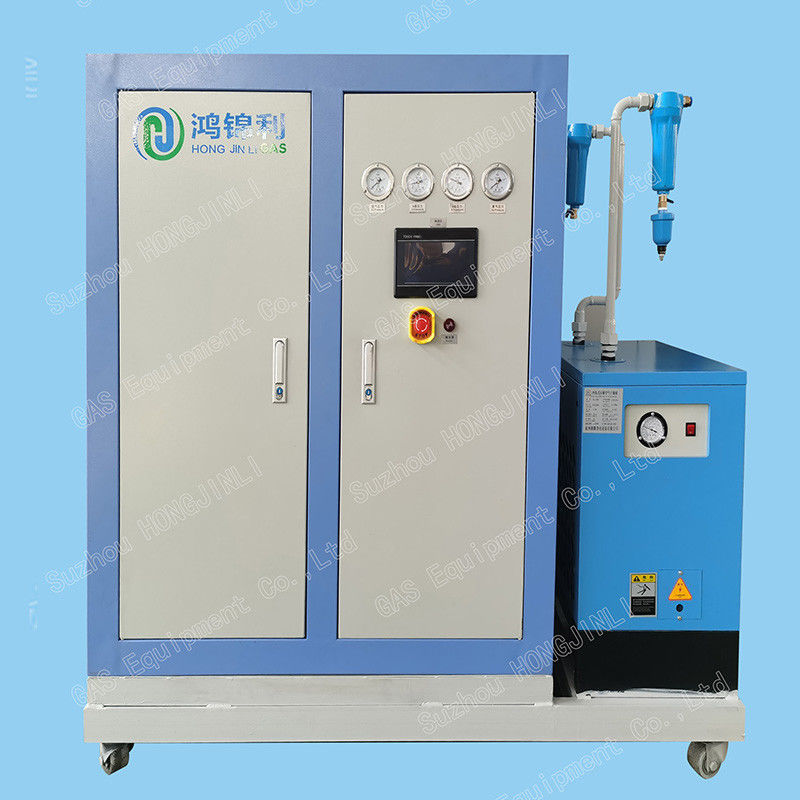

Box PSA Nitrogen Generator

Nitrogen capacity : 1 ~100Nm3/h
Nitrogen purity : 95%-99.999%
Nitrogen pressure : 0.5-0.8Mpa(boost for high pressure) Nitrogen dew point : ≤-40℃(Atmosphere pressure)
Control power supply : 0.2kw 220v 50Hz
